Description:

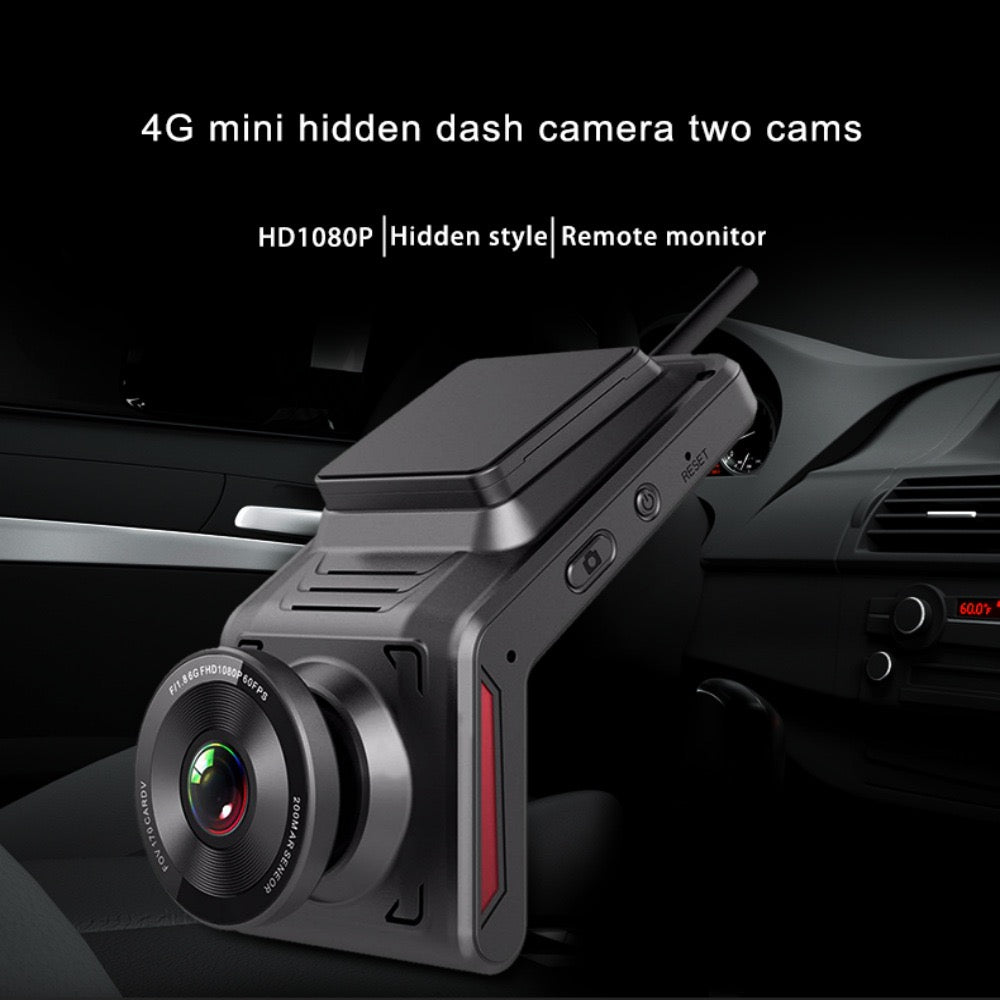

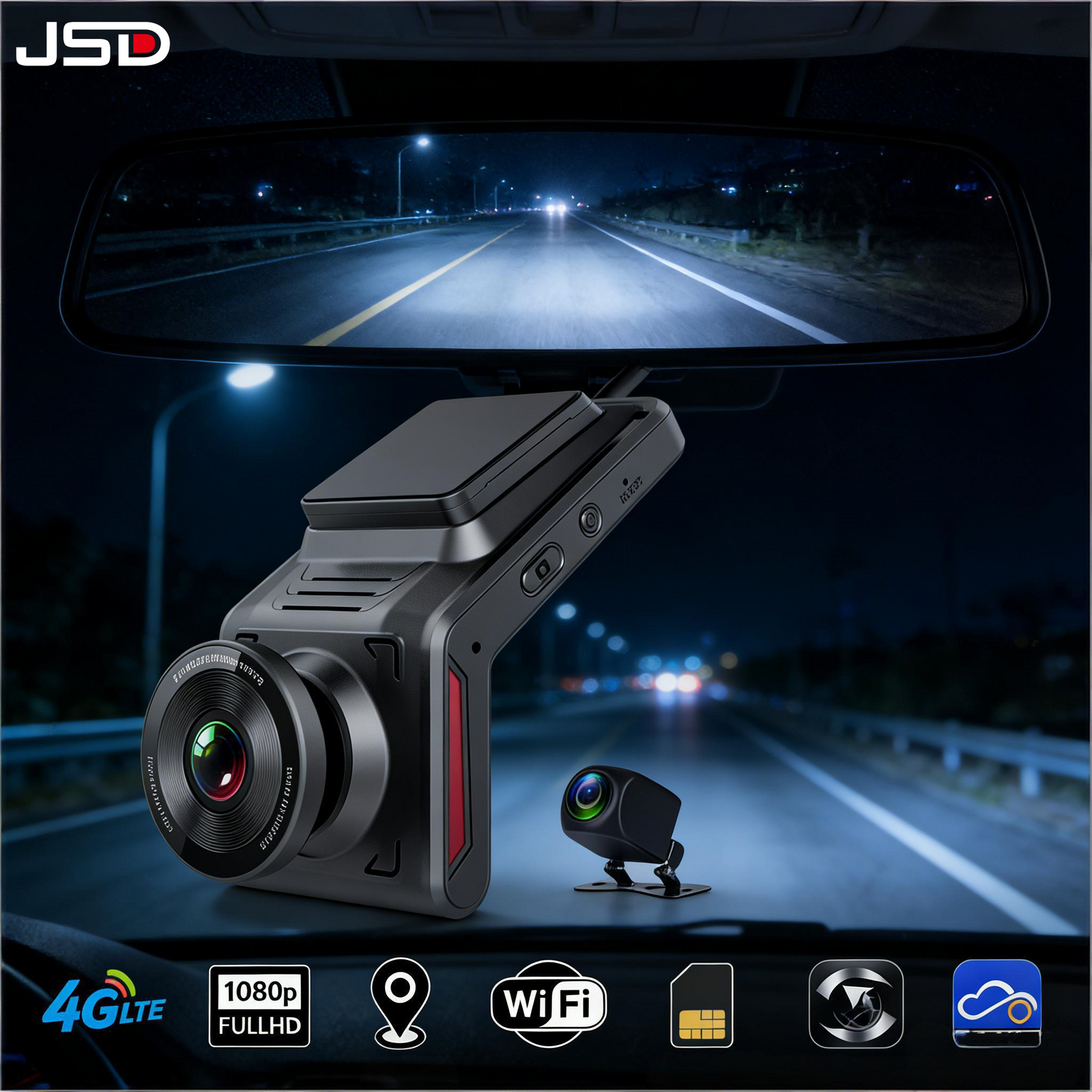

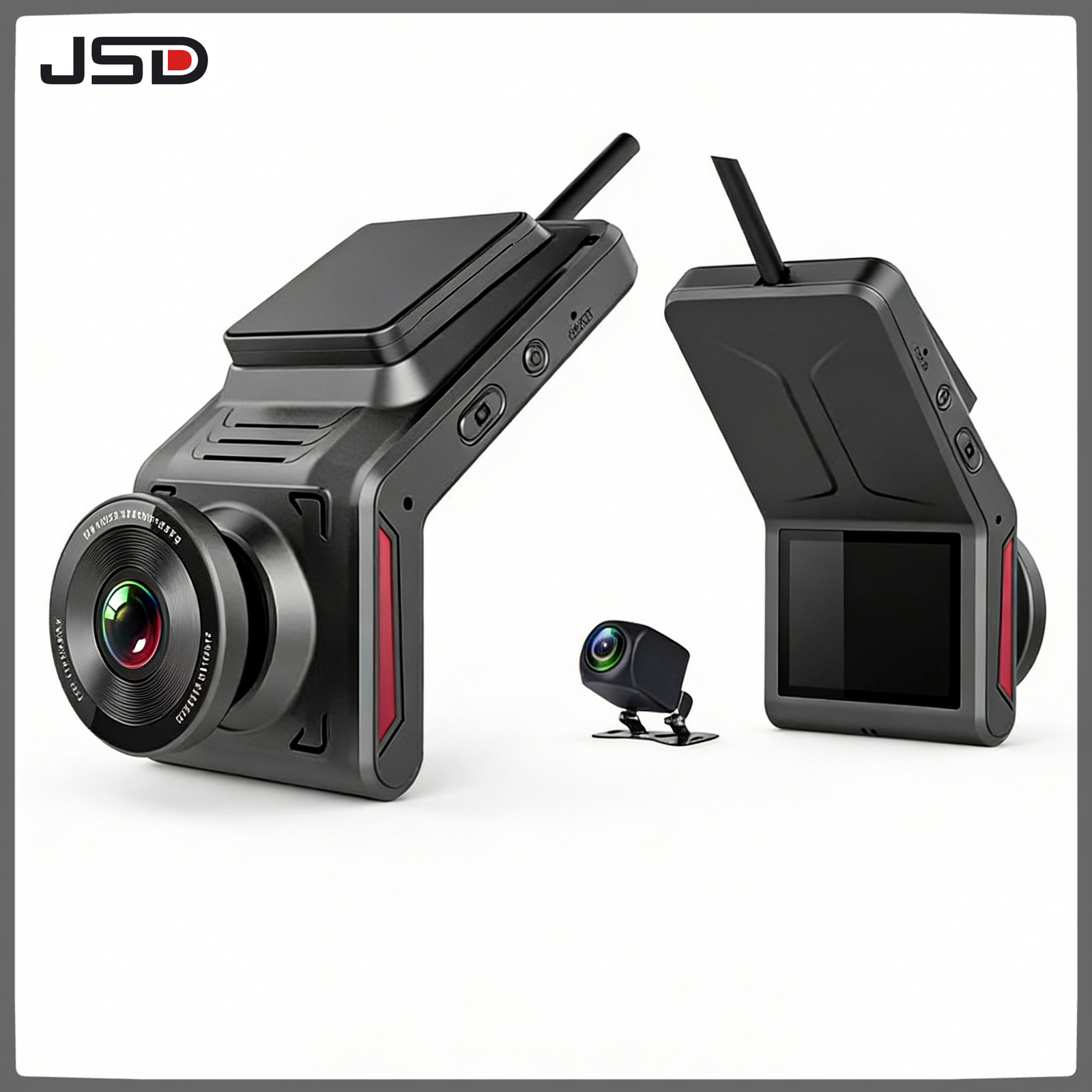

This product is a universal 4G car video recorder with a high-definition 1080P camera.

One-click snapshot, parking monitoring, remote live streaming, track playback, point-to-point Wi-Fi preview.

4G network sharing, ultra-low power consumption, multifunctional high-definition dashcam.

Feature:

1. Live streaming function

Condition: the digital dashcam must be connected to the network, and the network connection must be normal.

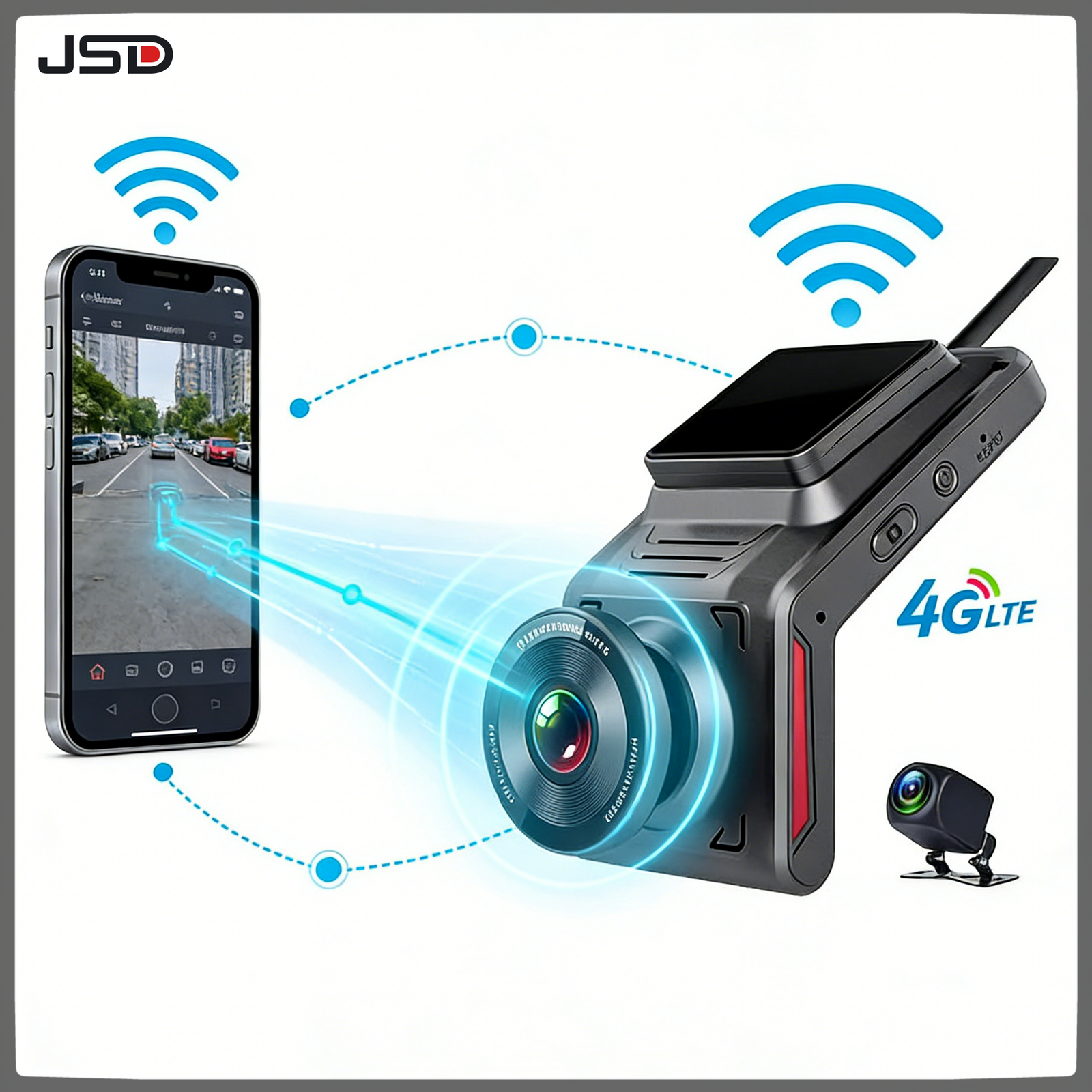

Function introduction: you can remotely view the real-time dynamic image of the car on your mobile phone. After 1 minute of playback, it will prompt you to save the video to your mobile phone. Voice transmission: during live streaming, you can also press (press and hold to speak), and the video recorder will broadcast what you say. (Note: Due to the real-time live streaming function, this depends on the network status. If the network is not working properly, there may be image freezing or delay)

2. Remote snapshot function:

Applicable scenarios: if you want to know the status of the car in real time, it will upload images and location information of the car after you click on the snapshot.

3. How to view videos from a memory card in a video recorder via a mobile phone.

1) To view video files accessed from a memory card via a mobile phone, the mobile phone must be connected to the recorder's access point.

2) Once the access point is connected, open the video cloud APK file, click on the device information in the recorder interface, and the recorder file can view the corresponding video on the memory card.

3) For important videos, you can long press the video and select to download it to your mobile phone, then you don't need to connect the Wi-Fi recorder to view the playback in your mobile phone album.

5. Movement history query (check yesterday's and previous movement paths)

The difference between connecting directly to a Wi-Fi access point and connecting to a 4G network

1. WIFI connection: the mobile phone is directly connected to the recorder's access point. A direct Wi-Fi connection allows you to view the camera screen and directly access the contents of the recorder's memory card, and can also directly play or download video files from the memory card to your mobile phone without consumption, without traffic, and without 4G network restrictions.

2. 4G network connection: unable to access the contents of the recorder's memory card.

Other functions of the operation recorder depend on the 4G network strength of the mobile phone and recorder, and there is a certain delay.

Specifications:

Frame rate: 25 frames per second

Solution (chip manufacturer): SL8521E, dual-core Cortex-A53 1.3 GHz processor

Assembly method: portable video recorder

Service record: Yes

Application language: Chinese, Japanese, English, French, German, Russian, Italian

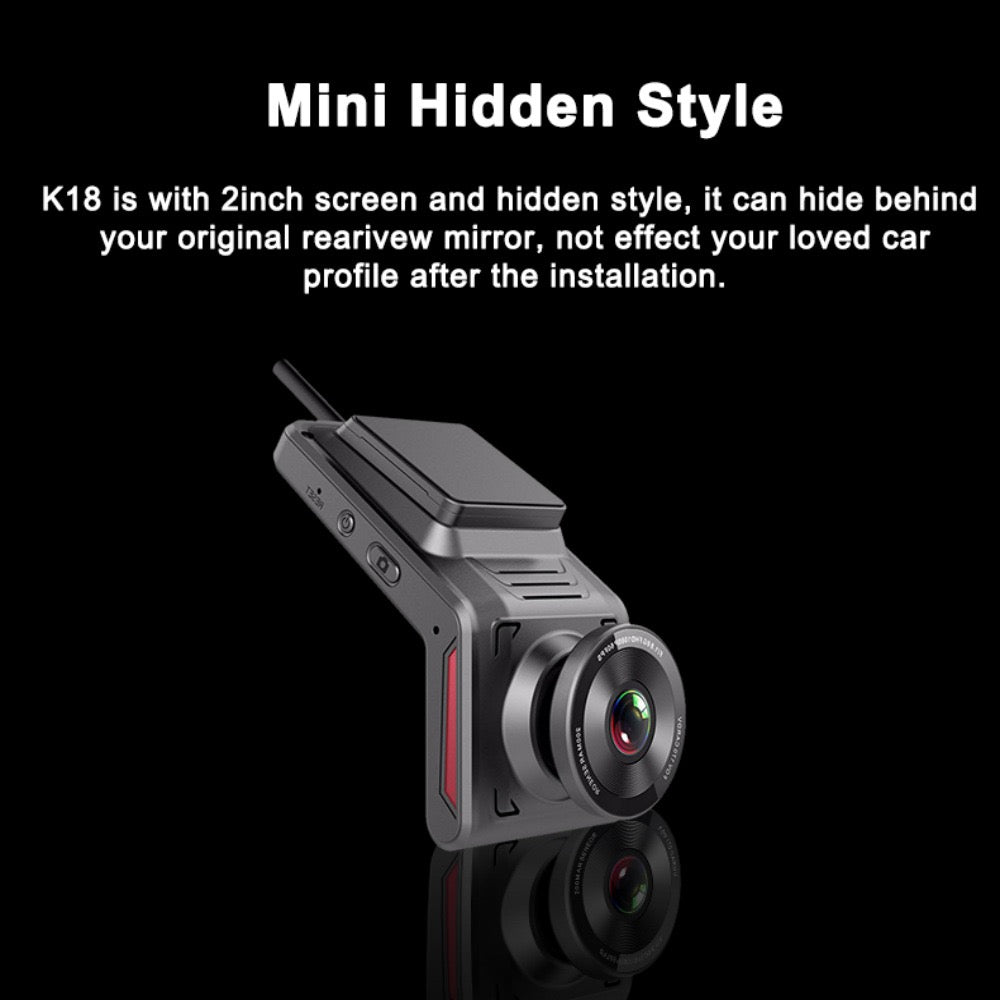

Screen size: 2 inches

Display type: 4-line SPI interface

Screen resolution: 320*240

Pixel: 1080P

Weight: 0.7 kg

Dimensions: 105*55 mm/4.16*2.17 inches

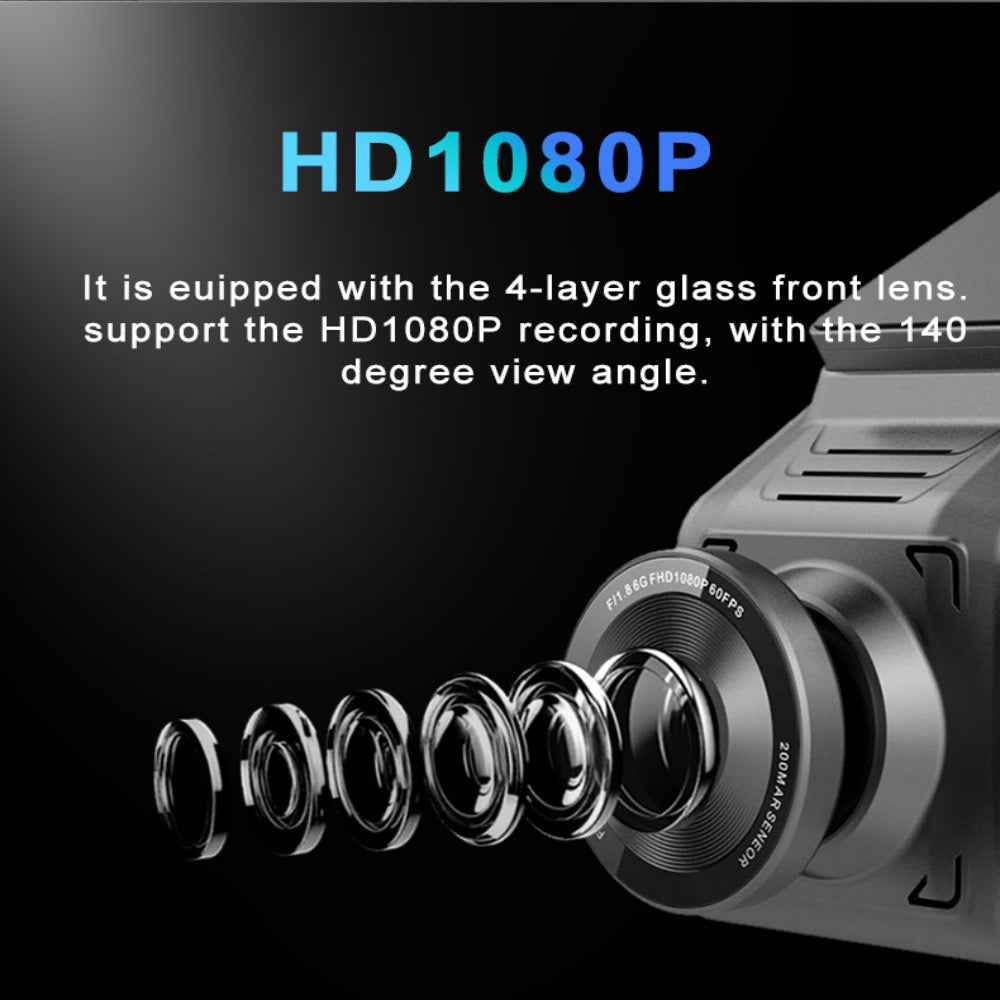

Image sensor: C2395, 4 glass, 120 degrees

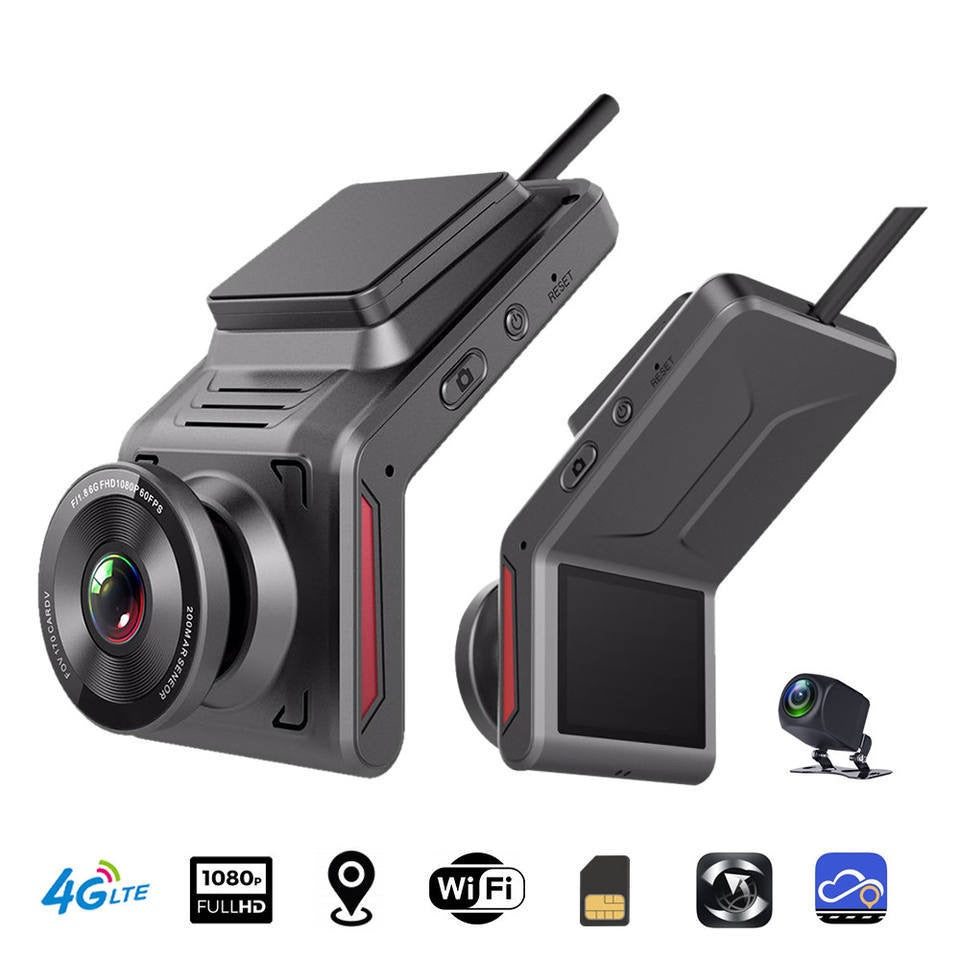

Number of cameras: 2

ROM: 512 MB

RAM: 256 MB

Satellite positioning: GPS + BDS, external passive antenna

Operating system: Linux

Software update: Supports software updates via TF card, OTA online update

WIFI: 802.11b/g/n 2.4 GHz, WIFI access point support

Remote monitoring: mobile app remote monitoring support

Driving playback: support

Remote live video: remote live video and voice call support

Video file viewing and downloading: Supports viewing video files on TF card and downloading video files to mobile phones.

Communication frequency range: WCMDA: B1; LTE: B1, B3

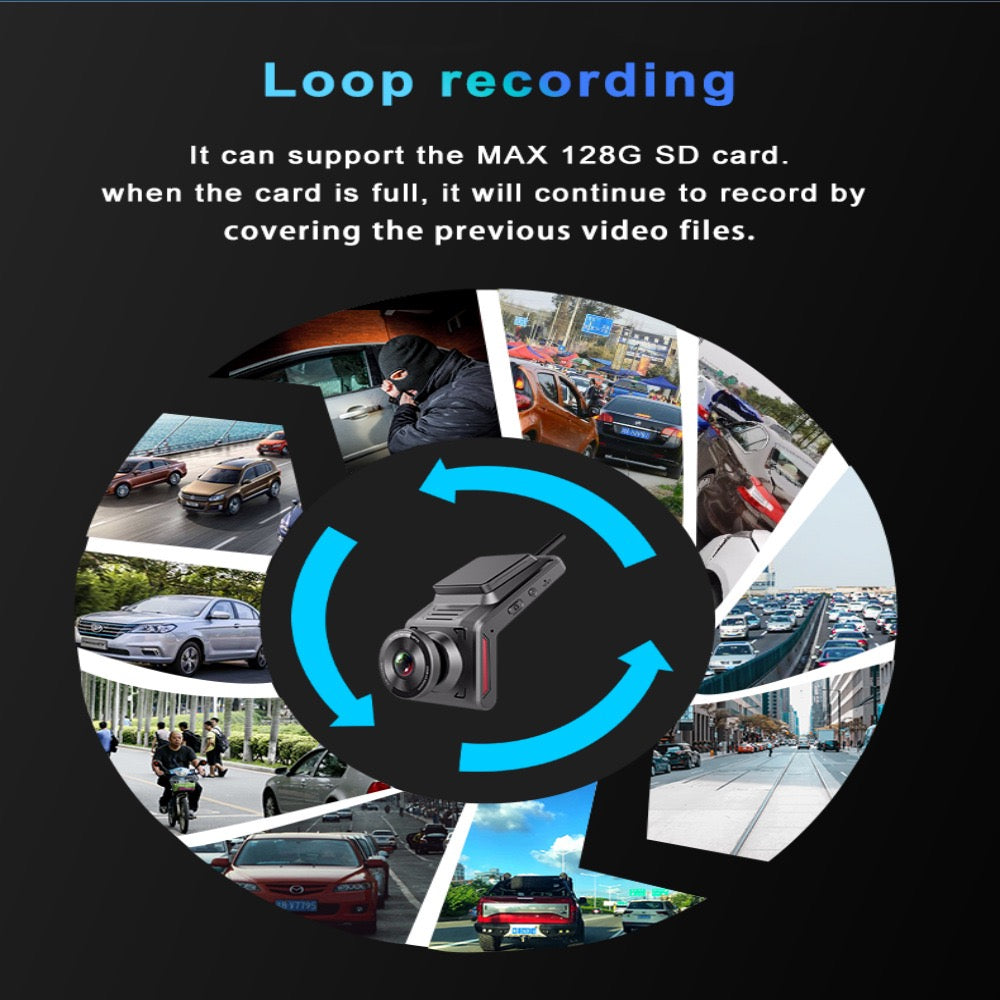

Collision file saving: 3-axis G-sensor, supports loop recording

Parking monitoring: 3-axis G-sensor, parking monitoring support

Front camera: C2395, 4 lenses, 120 degrees

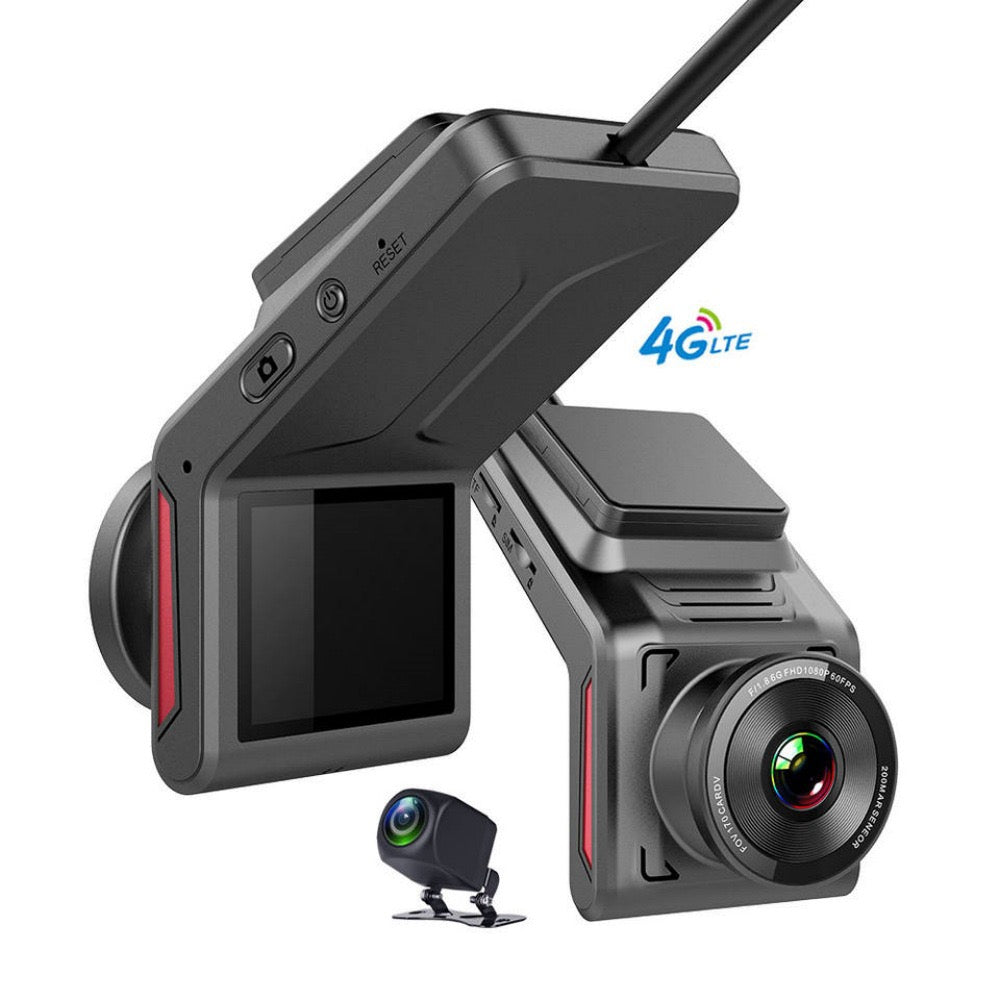

Rear view camera: USB 480 P

Video: front 1920*1080 25 frames per second, rear 640*480 15 frames per second

Video compression standard: H.264

Storage: TF card, maximum support 128 GB

Microphone: built-in high-sensitivity microphone

Speaker: built-in high-quality monophonic speaker 1.5 W/8R

Button: power button, camera button, reset button

Reset function: support

Power supply: 12 V DC, for BMW linear input voltage 12 V, wide voltage range support 9-16 V

ACC: ACC detection support

Photo format: JPG

Video format: TS

Video encoding: H.264

Shooting angle: 120 degrees

Supported memory card read speed: Class 10

Operating temperature: -20~+70℃

Storage temperature: -30~+80℃

Touchscreen: No

Original box packaging: Yes

Note: The power cord can only be connected to a car battery, not a cigarette lighter. If you need connection instructions, please contact us, thank you!
